GE Bayer Resin Makrolon Decorative Sheet Polycarbonate Sheet
Product Description
Polycarbonate Sunshine Board Series

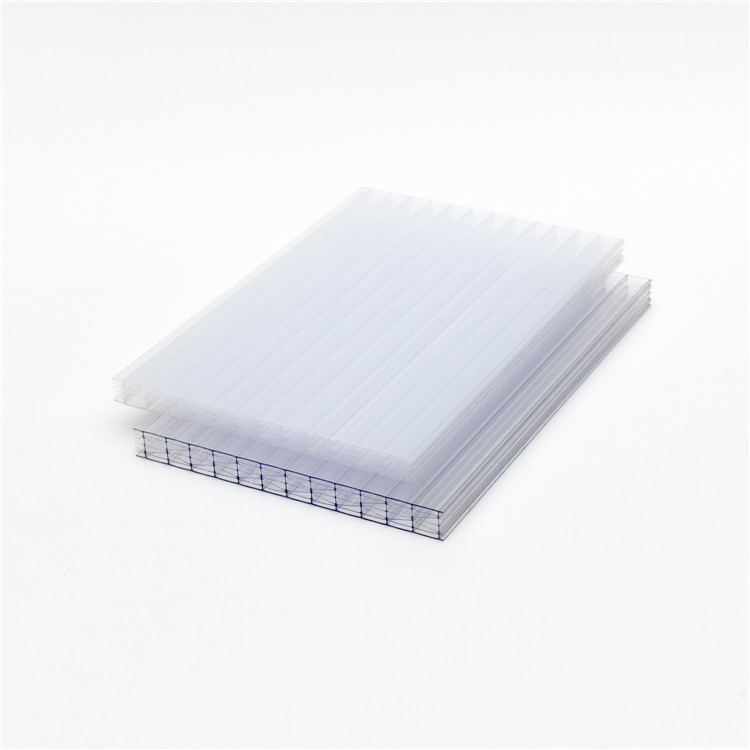

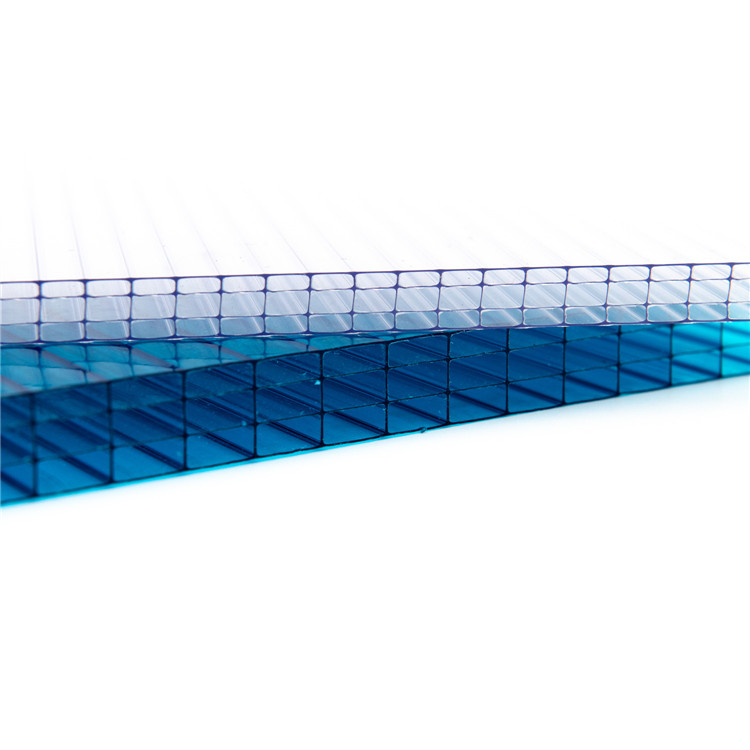

General Polycarbonate hollow sheet (Anti-UV surface hollow sheet )
General polycarbonate sheet is a basic type with light weight ,heat resistance ,and excellent light transmission .It meet requirement of commom glazing .NiLin Pc sheet is UV-Protect by co-extrusion ,can make it having better function to weather resistance ,more effectively prevent sheets turning yellow and euphotic.
Glittering hollow sheet has the shining efect ,making the penetrated light without light pattern ,reducing light pollution.It features better visual effect and wear resistance
| Thickness(mm) | Structure | Weight(g/sqm) | Min.Bend Radii(mm) | standard size | color |
| 4 | 2-layer | 850 | 700 | 2100mm*6000mm | blue |
| 5 | 2-layer | 1000 | 875 | green | |
| 6 | 2-layer | 1150 | 1050 | opal | |
| 8 | 2-layer | 1450 | 1400 | bronze | |
| 10 | 3-layer | 1650 | 1750 | gray | |
| 12 | 3-layer | 2000 | 2100 | yellow | |
| 14 | 3-layer | 2300 | 2450 | Glittering | |
| 16 | 3-leyer | 2700 | 2800 | clear |
Polycarbonate hollow sheet technical date
| Standard width | 2100mm |
| Standard length | 6000mm |
| UV protection layer | 50μm |
| Soften temperature | 148℃ |
| Continunous use temperature | -40℃—120℃ |
| Impact strength | 850 J/M |
| Elastic modulus | 2400MPa (at yeild 50mm/min.ISO 527) |
| Tensile stress | 63MPa (at yeild 50mm/min.ISO 527) |
| Tensile strain | 6%(at yeild 50mm/min.ISO 527) |
| Nimimal tensile strain | >50%(at break .50mm/mim. ISO527) |
| Flexural strength | 100N/mm |
| Specific heat | 1.17Kj/kg. k |
| Fire rating | Gb8624-1997 B1 |
| Effect of soundproof | 20dB |
Products Features:
Light weight
High Impact strength
High light transmission
Good weather resistance and UVprotection
High heat insulation
Simply processed and installed
1. Reply your inquiry in the soonest time ,24 Hours on line
2.Experienced staffs answer all your questions
3. Customized design is available and OEM is welcomed.
4. Special discount and protection of sales area provided to our distributor.
5. The price we will offer referring to your detail request, so please kingly inform us the thickness, size, color and other requirements you prefer, and the special offer will be given.
6. We can produce various polycarbonate sheets and we are willing to offer you some advice for reference.
Suzhou NILIN New Materials Technology Co., Ltd. started since 2017 and are an influential enterprise specializing in PC (polycarbonate) sheeting and PC profile. We have 2 main production lines and we use 100% virgin Makrolon resin from Bayer and Lexan resin from SABIC. Our annual production capacity is 9000 Metric Tons. We got ISO9001:2015 quality system certificate and ROHS.Our brand pc hollow sheet, solid pc sheet and PC profile which are well know of their stable quantity and it is available in a diverse variety with complete specifications, thus it is able to meet the different requirements of our customers. we can also process large orders to our customers' specifications and samples.NILIN products feature super weather and impact resistance, and good light transmission. Light weight, and easy to install, they are widely used in agriculture greenhouse,construction projects, decorative roofing & Transparent partition PC panle ,pc protective cover PC protective glasses,advertising displays and so on.As a result of our products' high quality, competitive price and large selection, NILIN PC sheets sell well both at home and abroad. We sincerely invite interested parties to contact us and all enquiries will receive our closest
Q: Are you manufacture or trading company?
A: We are manufacturer and Trade combine
Q: How can I get the samples?
A: chagre of free about sample ,you side pay delivery fee only .
Q: Can you give me discount?
A: Yes, of course. If you contact me, you’ll get more.
Q: Can the factory make the OEM service or make our own packaging with logo?
A: We can accept the OEM service and can make your logo on packaging.
Q: What kind of payment terms you can accept?
A: We can accept T/T, L/C, and Western Union.
Q: What is your shipping terms?
A: For small trial order,FEDEX, DHL, UPS, TNT etc can be provided.
B: For larger order,we can arrange shipment by sea,by air according to your requirement.
Product Categories : Greenhouse Sheet
